Venturi Scrunner Designed to suit any process gas requiring particulate removal, our design offers maximum scrubber efficiency through our validated design.

Features

• Up to 99%+ collection efficiency into submicron range
• Pressure drops from 2.5-15 kPa (10-60 in. w.g.)
• Adjustable venturi throat (manual or automatic)
• Liquid distribution by open pipes rather than nozzles
• Slurries with high solids can be recycled
• Handles high inlet gas temperatures
• No wet/dry line buildup
• Virtually maintenance free

Operation

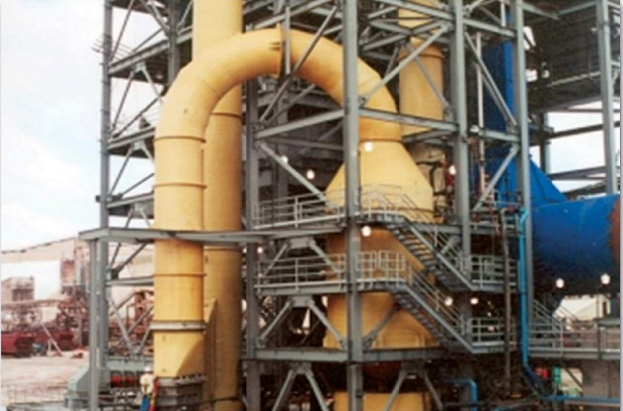

The design of our Scrubber consists of a "wet approach" venturi, followed by a liquid entrainment separator. Dust laden gases enter the venturi and instantly make contact with the tangentially introduced scrubbing liquid swirling down the venturi's converging walls. At the venturi throat, the gas and liquid streams collide and the liquid breaks down into droplets which trap dust particles.

This gas/liquid mixture passes through a flooded elbow, and enters the entrainment separator through a tangential inlet. Centrifugal action removes the heavy wetted particles from the gas stream.

As an alternate, when very large diameter separators are required, the liquid is separated by passing the stream through a chevron-type mist eliminator baffle. The dust/liquid mixture is discharged from the separator bottom drain and the cleaned gas leaves through the top of the separator.
